Downloading and importing data series
• With PowerCoach you can directly communicate on Mac OS and Windows with following recorder devices and download all recorded series.| RECORDER DEVICE | SPE | SPW | CAD | POW | PDX | PWL | PWR | PWB | TQH | HRA | TEM | PRE | ALT | GPN | GPE | GARMIN Edge 500 | U | • | • | • | • | • | • | • | • |

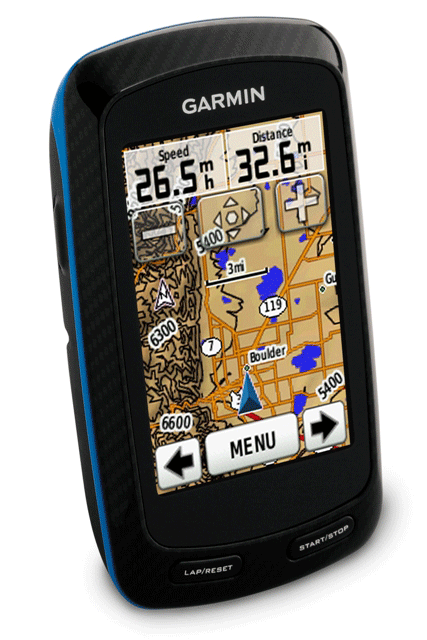

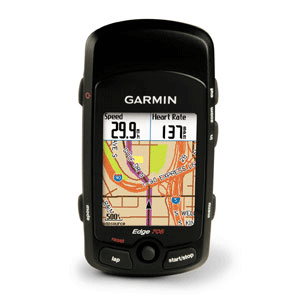

| GARMIN Edge 705 | U | • | • | • | • | • | • | • | GARMIN Edge 800 | U | • | • | • | • | • | • | • | • |

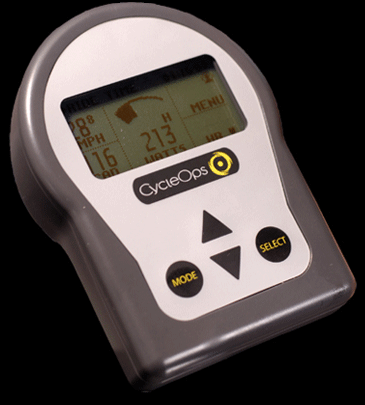

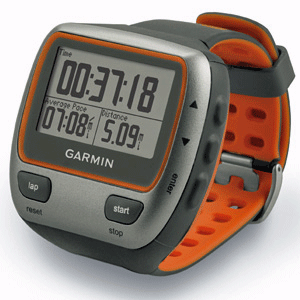

| Forerunner® 310XT | G | • | • | • | • | • | • | • | Indoor Pro 300PT | L | • | • | • | • | • | |

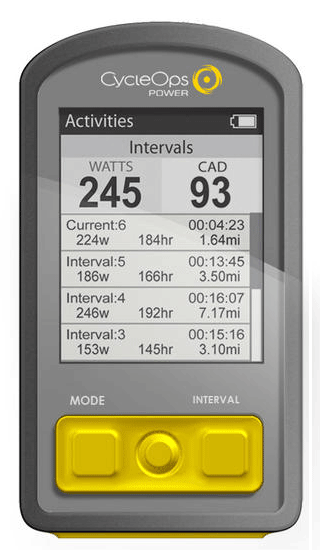

| Indoor Club Pro 300PT | L | • | • | • | • | • | Joule™ 2.0 | U | • | • | • | • | • | • | • | |

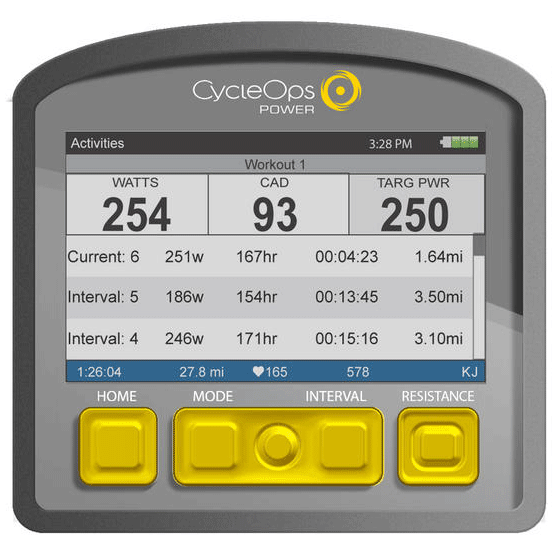

| Joule™ 3.0 | U | • | • | • | • | • | • | • | LeMond Power Pilot | U | • | • | • | • | ||

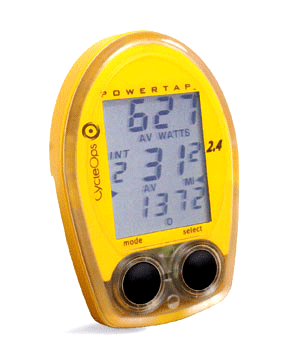

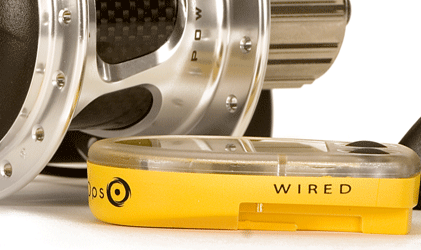

| PowerTap Pro/SL | L | • | • | • | • | • | PowerTap 2.4 | L | • | • | • | • | • | |||

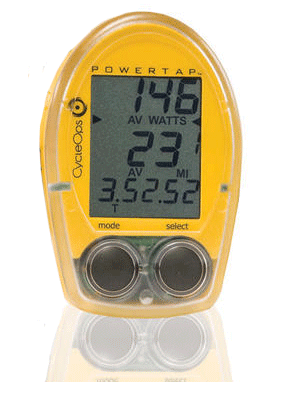

| PowerTap Plus Series | L | • | • | • | • | • | SRM Powercontrol V | L | • | • | • | • | • | |||

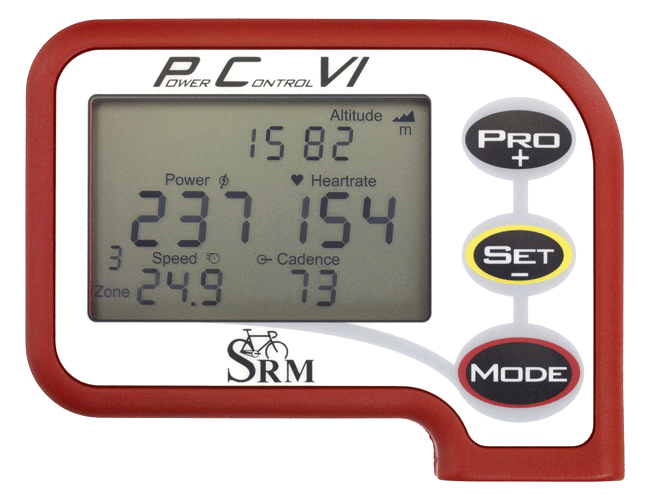

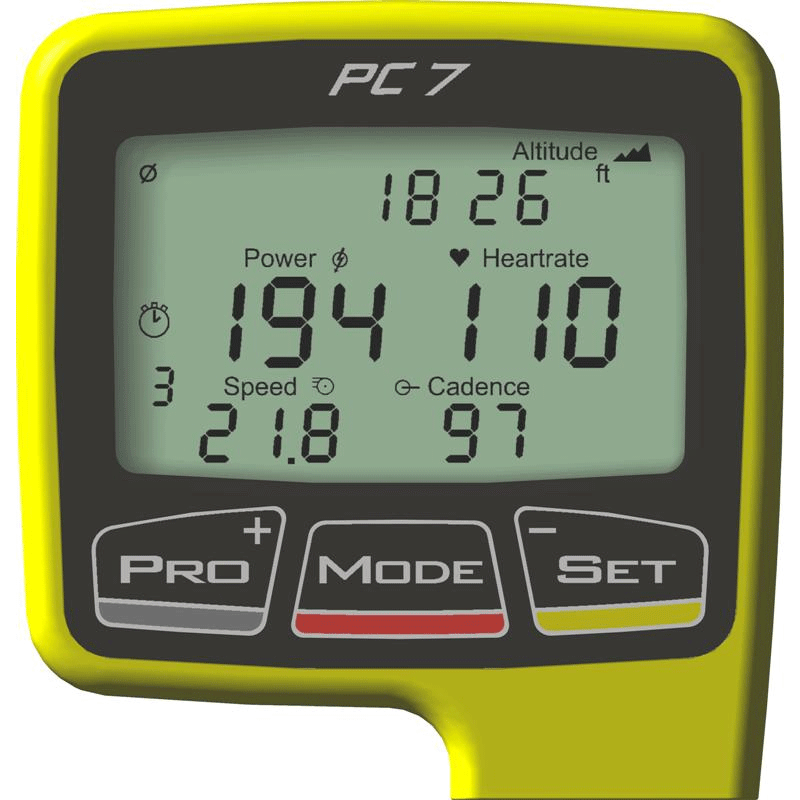

| SRM Powercontrol VI | L | • | • | • | • | • | • | SRM Powercontrol 7 | L | • | • | • | • | • | • | |
| SPE | SPW | CAD | POW | PDX | PWL | PWR | PWB | TQH | HRA | TEM | PRE | ALT | GPN | GPE |
L = download/import with LINK
U = download/import via USB
• With PowerCoach you can import on Mac OS and Windows the following file types. Such files are created by the software of recorder devices or third party applications. If contained in a file, you can import all marked series.
| FILE TYPE | EXT | SPE | SPW | CAD | POW | PDX | PWL | PWR | PWB | TQH | HRA | TEM | PRE | ALT | GPN | GPE |
| Ancarr Elite | .txt | • | ||||||||||||||
| E-Train | .csv | • | • | • | ||||||||||||
| ergomoWin | .erg | • | • | • | • | • | ||||||||||
| FRWD Replayer | .txt | • | • | • | • | • | • | • | ||||||||
| GARMIN Activity | .fit | • | • | • | • | • | • | • | • | |||||||
| GARMIN Activity | .tcx | • | • | • | • | • | • | • | • | |||||||
| GARMIN TC | .tcx | • | • | • | • | • | • | • | ||||||||
| iBike | .csv | • | • | • | • | • | • | • | ||||||||
| i-Smart | .hrm | • | • | • | • | • | • | • | • | • | ||||||
| LeMond Power Pilot | .csv | • | • | • | • | |||||||||||
| Mobile Action | .csv | • | • | • | • | |||||||||||
| Polar HR Analysis | .txt | • | ||||||||||||||
| Polar PP | .hrm | • | • | • | • | • | • | • | • | • | ||||||
| PowerCoach | .txt | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
| PowerCom | .txt | • | • | • | • | |||||||||||
| PowerAgent | .csv | • | • | • | • | • | • | • | ||||||||
| PowerTap Link | .csv | • | • | • | • | |||||||||||
| SPY Win | .txt | • | • | • | • | • | ||||||||||
| SRM Training | .txt | • | • | • | • | • | • | |||||||||
| Winpuls | .hrm | • | ||||||||||||||
| SPE | SPW | CAD | POW | PDX | PWL | PWR | PWB | TQH | HRA | TEM | PRE | ALT | GPN | GPE |
| SPE | speed | SPW | wind speed |
| CAD | pedaling cadence |
| POW | pedaling power |
| PDX | pedaling power index |
| PWL | left pedaling power |
| PWR | right pedaling power |
| PWB | pedaling power proportion |
| TQH | hub torque |
| HRA | heart rate |
| TEM | ambient air temperature |
| PRE | atmospheric pressure |
| ALT | altitude above sea level |
| GPN | geoposition north |
| GPE | geoposition east |
•
Pull down the "PowerCoach" main menu and choose "Import..." or type [CTR]+[I] to select and open a file:
- If PowerCoach recognizes the file type, it will import available data and launch a new "Series" Job.
- If PowerCoach does not recognize the file type, a dialog will inform the user.
- If PowerCoach recognizes the file type, it will import available data and launch a new "Series" Job.
- If PowerCoach does not recognize the file type, a dialog will inform the user.
Pictures...
| deutsch | français | english |
NOTE: On Windows, if you have problems to import from desktop, save or drag the files to other locations (for example to "My Documents" folder).
Did you know ?
You can join series recorded simultaneously with several devices by simple drag and drop. For example, you may join the ALT series of a Polar watch to the SPE, CAD, POW and HRA series recorded with PowerTap. Or you may join to SRM recordings the GPN, GPE, ALT and PRE series from FRWD recorders.
You can join series recorded simultaneously with several devices by simple drag and drop. For example, you may join the ALT series of a Polar watch to the SPE, CAD, POW and HRA series recorded with PowerTap. Or you may join to SRM recordings the GPN, GPE, ALT and PRE series from FRWD recorders.
